【树莓派】docker+rtmp视频监控

在熟悉docker的情况下,这应该是你在网上能找到最简便的树莓派+rtmp视频监控教程吧。

下面主要罗列下重要的几个配置文件:

创建容器

1
2
3
4
5
6
7
docker run --name rtmp -d -p 8980:80 -p 8935:1935 \
-v /opt/docker/rtmp/website:/usr/local/nginx/html \
-v /opt/docker/rtmp/logs:/usr/local/nginx/logs \
-v /opt/docker/rtmp/static:/www/static \
-v /opt/docker/rtmp/nginx.conf:/etc/nginx/nginx.conf \
-v /opt/docker/rtmp/hls:/opt/data/hls \
andylippitt/nginx-rtmp

stat.xsl

/opt/docker/rtmp/static/stat.xsl

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
<?xml version="1.0" encoding="utf-8" ?>
<!--
Copyright (C) Roman Arutyunyan
-->
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
<xsl:template match="/">
<html>
<head>
<title>RTMP statistics</title>
</head>
<body>
<xsl:apply-templates select="rtmp"/>
<hr/>
Generated by <a href='https://github.com/arut/nginx-rtmp-module'>
nginx-rtmp-module</a>&#160;<xsl:value-of select="/rtmp/nginx_rtmp_version"/>,
<a href="http://nginx.org">nginx</a>&#160;<xsl:value-of select="/rtmp/nginx_version"/>,
pid <xsl:value-of select="/rtmp/pid"/>,
built <xsl:value-of select="/rtmp/built"/>&#160;<xsl:value-of select="/rtmp/compiler"/>
</body>
</html>
</xsl:template>
<xsl:template match="rtmp">
<table cellspacing="1" cellpadding="5">
<tr bgcolor="#999999">
<th>RTMP</th>
<th>#clients</th>
<th colspan="4">Video</th>
<th colspan="4">Audio</th>
<th>In bytes</th>
<th>Out bytes</th>
<th>In bits/s</th>
<th>Out bits/s</th>
<th>State</th>
<th>Time</th>
</tr>
<tr>
<td colspan="2">Accepted: <xsl:value-of select="naccepted"/></td>
<th bgcolor="#999999">codec</th>
<th bgcolor="#999999">bits/s</th>
<th bgcolor="#999999">size</th>
<th bgcolor="#999999">fps</th>
<th bgcolor="#999999">codec</th>
<th bgcolor="#999999">bits/s</th>
<th bgcolor="#999999">freq</th>
<th bgcolor="#999999">chan</th>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bytes_in"/>
</xsl:call-template>
</td>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bytes_out"/>
</xsl:call-template>
</td>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bw_in"/>
<xsl:with-param name="bits" select="1"/>
<xsl:with-param name="persec" select="1"/>
</xsl:call-template>
</td>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bw_out"/>
<xsl:with-param name="bits" select="1"/>
<xsl:with-param name="persec" select="1"/>
</xsl:call-template>
</td>
<td/>
<td>
<xsl:call-template name="showtime">
<xsl:with-param name="time" select="/rtmp/uptime * 1000"/>
</xsl:call-template>
</td>
</tr>
<xsl:apply-templates select="server"/>
</table>
</xsl:template>
<xsl:template match="server">
<xsl:apply-templates select="application"/>
</xsl:template>
<xsl:template match="application">
<tr bgcolor="#999999">
<td>
<b><xsl:value-of select="name"/></b>
</td>
</tr>
<xsl:apply-templates select="live"/>
<xsl:apply-templates select="play"/>
</xsl:template>
<xsl:template match="live">
<tr bgcolor="#aaaaaa">
<td>
<i>live streams</i>
</td>
<td align="middle">
<xsl:value-of select="nclients"/>
</td>
</tr>
<xsl:apply-templates select="stream"/>
</xsl:template>
<xsl:template match="play">
<tr bgcolor="#aaaaaa">
<td>
<i>vod streams</i>
</td>
<td align="middle">
<xsl:value-of select="nclients"/>
</td>
</tr>
<xsl:apply-templates select="stream"/>
</xsl:template>
<xsl:template match="stream">
<tr valign="top">
<xsl:attribute name="bgcolor">
<xsl:choose>
<xsl:when test="active">#cccccc</xsl:when>
<xsl:otherwise>#dddddd</xsl:otherwise>
</xsl:choose>
</xsl:attribute>
<td>
<a href="">
<xsl:attribute name="onclick">
var d=document.getElementById('<xsl:value-of select="../../name"/>-<xsl:value-of select="name"/>');
d.style.display=d.style.display=='none'?'':'none';
return false
</xsl:attribute>
<xsl:value-of select="name"/>
<xsl:if test="string-length(name) = 0">
[EMPTY]
</xsl:if>
</a>
</td>
<td align="middle"> <xsl:value-of select="nclients"/> </td>
<td>
<xsl:value-of select="meta/video/codec"/>&#160;<xsl:value-of select="meta/video/profile"/>&#160;<xsl:value-of select="meta/video/level"/>
</td>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bw_video"/>
<xsl:with-param name="bits" select="1"/>
<xsl:with-param name="persec" select="1"/>
</xsl:call-template>
</td>
<td>
<xsl:apply-templates select="meta/video/width"/>
</td>
<td>
<xsl:value-of select="meta/video/frame_rate"/>
</td>
<td>
<xsl:value-of select="meta/audio/codec"/>&#160;<xsl:value-of select="meta/audio/profile"/>
</td>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bw_audio"/>
<xsl:with-param name="bits" select="1"/>
<xsl:with-param name="persec" select="1"/>
</xsl:call-template>
</td>
<td>
<xsl:apply-templates select="meta/audio/sample_rate"/>
</td>
<td>
<xsl:value-of select="meta/audio/channels"/>
</td>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bytes_in"/>
</xsl:call-template>
</td>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bytes_out"/>
</xsl:call-template>
</td>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bw_in"/>
<xsl:with-param name="bits" select="1"/>
<xsl:with-param name="persec" select="1"/>
</xsl:call-template>
</td>
<td>
<xsl:call-template name="showsize">
<xsl:with-param name="size" select="bw_out"/>
<xsl:with-param name="bits" select="1"/>
<xsl:with-param name="persec" select="1"/>
</xsl:call-template>
</td>
<td><xsl:call-template name="streamstate"/></td>
<td>
<xsl:call-template name="showtime">
<xsl:with-param name="time" select="time"/>
</xsl:call-template>
</td>
</tr>
<tr style="display:none">
<xsl:attribute name="id">
<xsl:value-of select="../../name"/>-<xsl:value-of select="name"/>
</xsl:attribute>
<td colspan="16" ngcolor="#eeeeee">
<table cellspacing="1" cellpadding="5">
<tr>
<th>Id</th>
<th>State</th>
<th>Address</th>
<th>Flash version</th>
<th>Page URL</th>
<th>SWF URL</th>
<th>Dropped</th>
<th>Timestamp</th>
<th>A-V</th>
<th>Time</th>
</tr>
<xsl:apply-templates select="client"/>
</table>
</td>
</tr>
</xsl:template>
<xsl:template name="showtime">
<xsl:param name="time"/>
<xsl:if test="$time &gt; 0">
<xsl:variable name="sec">
<xsl:value-of select="floor($time div 1000)"/>
</xsl:variable>
<xsl:if test="$sec &gt;= 86400">
<xsl:value-of select="floor($sec div 86400)"/>d
</xsl:if>
<xsl:if test="$sec &gt;= 3600">
<xsl:value-of select="(floor($sec div 3600)) mod 24"/>h
</xsl:if>
<xsl:if test="$sec &gt;= 60">
<xsl:value-of select="(floor($sec div 60)) mod 60"/>m
</xsl:if>
<xsl:value-of select="$sec mod 60"/>s
</xsl:if>
</xsl:template>
<xsl:template name="showsize">
<xsl:param name="size"/>
<xsl:param name="bits" select="0" />
<xsl:param name="persec" select="0" />
<xsl:variable name="sizen">
<xsl:value-of select="floor($size div 1024)"/>
</xsl:variable>
<xsl:choose>
<xsl:when test="$sizen &gt;= 1073741824">
<xsl:value-of select="format-number($sizen div 1073741824,'#.###')"/> T</xsl:when>
<xsl:when test="$sizen &gt;= 1048576">
<xsl:value-of select="format-number($sizen div 1048576,'#.###')"/> G</xsl:when>
<xsl:when test="$sizen &gt;= 1024">
<xsl:value-of select="format-number($sizen div 1024,'#.##')"/> M</xsl:when>
<xsl:when test="$sizen &gt;= 0">
<xsl:value-of select="$sizen"/> K</xsl:when>
</xsl:choose>
<xsl:if test="string-length($size) &gt; 0">
<xsl:choose>
<xsl:when test="$bits = 1">b</xsl:when>
<xsl:otherwise>B</xsl:otherwise>
</xsl:choose>
<xsl:if test="$persec = 1">/s</xsl:if>
</xsl:if>
</xsl:template>
<xsl:template name="streamstate">
<xsl:choose>
<xsl:when test="active">active</xsl:when>
<xsl:otherwise>idle</xsl:otherwise>
</xsl:choose>
</xsl:template>
<xsl:template name="clientstate">
<xsl:choose>
<xsl:when test="publishing">publishing</xsl:when>
<xsl:otherwise>playing</xsl:otherwise>
</xsl:choose>
</xsl:template>
<xsl:template match="client">
<tr>
<xsl:attribute name="bgcolor">
<xsl:choose>
<xsl:when test="publishing">#cccccc</xsl:when>
<xsl:otherwise>#eeeeee</xsl:otherwise>
</xsl:choose>
</xsl:attribute>
<td><xsl:value-of select="id"/></td>
<td><xsl:call-template name="clientstate"/></td>
<td>
<a target="_blank">
<xsl:attribute name="href">
http://apps.db.ripe.net/search/query.html&#63;searchtext=<xsl:value-of select="address"/>
</xsl:attribute>
<xsl:attribute name="title">whois</xsl:attribute>
<xsl:value-of select="address"/>
</a>
</td>
<td><xsl:value-of select="flashver"/></td>
<td>
<a target="_blank">
<xsl:attribute name="href">
<xsl:value-of select="pageurl"/>
</xsl:attribute>
<xsl:value-of select="pageurl"/>
</a>
</td>
<td><xsl:value-of select="swfurl"/></td>
<td><xsl:value-of select="dropped"/></td>
<td><xsl:value-of select="timestamp"/></td>
<td><xsl:value-of select="avsync"/></td>
<td>
<xsl:call-template name="showtime">
<xsl:with-param name="time" select="time"/>
</xsl:call-template>
</td>
</tr>
</xsl:template>
<xsl:template match="publishing">
publishing
</xsl:template>
<xsl:template match="active">
active
</xsl:template>
<xsl:template match="width">
<xsl:value-of select="."/>x<xsl:value-of select="../height"/>
</xsl:template>
</xsl:stylesheet>

crossdomain.xml

/opt/docker/rtmp/static/crossdomain.xml

1
2
3
4
5
6
7
<?xml version="1.0"?>
<!DOCTYPE cross-domain-policy SYSTEM "http://www.adobe.com/xml/dtds/cross-domain-policy.dtd">
<cross-domain-policy>
<site-control permitted-cross-domain-policies="all"/>
<allow-access-from domain="*" secure="false"/>
<allow-http-request-headers-from domain="*" headers="*" secure="false"/>
</cross-domain-policy>

/opt/docker/rtmp/website/index.html

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>树莓派-Live</title>
<link href="https://unpkg.com/video.js/dist/video-js.min.css" rel="stylesheet">
<script src="https://unpkg.com/video.js/dist/video.min.js"></script>
<style>
#roomVideo {
margin: 0 auto;
width: 600px;
height: 400px;
}
</style>
</head>
<body>
<video-js id="roomVideo" controls class="video-js vjs-default-skin vjs-big-play-centered" x-webkit-airplay="allow"
poster="" webkit-playsinline playsinline x5-video-player-type="h5" x5-video-player-fullscreen="true"
preload="auto">
<source src="https://live.bfsdfs.com/live/stream.m3u8" type="application/x-mpegURL">
<p class="vjs-no-js">To view this video please enable JavaScript, and consider upgrading to a web browser that
<a href="http://videojs.com/html5-video-support/" target="_blank">supports HTML5 video</a></p>
</video-js>
<script>
var vid = document.getElementById('roomVideo');
var player = videojs(vid, {
bigPlayButton: true,
textTrackDisplay: true,
posterImage: true,
errorDisplay: true,
controlBar: true
}, function () {
console.log(this)
this.on('loadedmetadata', function () {
console.log('loadedmetadata');
//加载到元数据后开始播放视频
startVideo();
})

this.on('ended', function () {
console.log('ended')
})
this.on('firstplay', function () {
console.log('firstplay')
})
this.on('loadstart', function () {
//开始加载
console.log('loadstart')
})
this.on('loadeddata', function () {
console.log('loadeddata')
})
this.on('seeking', function () {
//正在去拿视频流的路上
console.log('seeking')
})
this.on('seeked', function () {
//已经拿到视频流,可以播放
console.log('seeked')
})
this.on('waiting', function () {
console.log('waiting')
})
this.on('pause', function () {
console.log('pause')
})
this.on('play', function () {
console.log('play')
})
});
var isVideoBreak;
function startVideo() {
player.play();
//微信内全屏支持
// document.getElementById('roomVideo').style.width = window.screen.width + "px";
// document.getElementById('roomVideo').style.height = window.screen.height + "px";
//判断开始播放视频,移除高斯模糊等待层
// var isVideoPlaying = setInterval(function () {
// var currentTime = player.currentTime();
// if (currentTime > 0) {
// $('.vjs-poster').remove();
// clearInterval(isVideoPlaying);
// }
// }, 200)
//判断视频是否卡住,卡主3s重新load视频
var lastTime = -1,
tryTimes = 0;
clearInterval(isVideoBreak);
isVideoBreak = setInterval(function () {
var currentTime = player.currentTime();
console.log('currentTime' + currentTime + 'lastTime' + lastTime);
if (currentTime == lastTime) {
//此时视频已卡主3s
//设置当前播放时间为超时时间,此时videojs会在play()后把currentTime设置为0
player.currentTime(currentTime + 10000);
player.play();
//尝试5次播放后,如仍未播放成功提示刷新
if (++tryTimes > 5) {
alert('您的网速有点慢,刷新下试试');
tryTimes = 0;
}
} else {
lastTime = currentTime;
tryTimes = 0;
}
}, 3000)
}
</script>
</body>
</html>

nginx.conf

/opt/docker/rtmp/nginx.conf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
daemon off;

error_log /dev/stdout info;

events {
worker_connections 1024;
}

rtmp {
server {
listen 1935;
chunk_size 4000;

application stream {
live on;

exec ffmpeg -i rtmp://localhost:1935/stream/$name
-c:a libfdk_aac -b:a 128k -c:v libx264 -b:v 2500k -f flv -g 30 -r 30 -s 1280x720 -preset superfast -profile:v baseline rtmp://localhost:1935/hls/$name_720p2628kbs
-c:a libfdk_aac -b:a 128k -c:v libx264 -b:v 1000k -f flv -g 30 -r 30 -s 854x480 -preset superfast -profile:v baseline rtmp://localhost:1935/hls/$name_480p1128kbs
-c:a libfdk_aac -b:a 128k -c:v libx264 -b:v 750k -f flv -g 30 -r 30 -s 640x360 -preset superfast -profile:v baseline rtmp://localhost:1935/hls/$name_360p878kbs
-c:a libfdk_aac -b:a 128k -c:v libx264 -b:v 400k -f flv -g 30 -r 30 -s 426x240 -preset superfast -profile:v baseline rtmp://localhost:1935/hls/$name_240p528kbs
-c:a libfdk_aac -b:a 64k -c:v libx264 -b:v 200k -f flv -g 15 -r 15 -s 426x240 -preset superfast -profile:v baseline rtmp://localhost:1935/hls/$name_240p264kbs;
}

application hls {
live on;
hls on;
hls_fragment_naming system;
hls_fragment 5;
hls_playlist_length 10;
hls_path /opt/data/hls;
hls_nested on;

hls_variant _720p2628kbs BANDWIDTH=2628000,RESOLUTION=1280x720;
hls_variant _480p1128kbs BANDWIDTH=1128000,RESOLUTION=854x480;
hls_variant _360p878kbs BANDWIDTH=878000,RESOLUTION=640x360;
hls_variant _240p528kbs BANDWIDTH=528000,RESOLUTION=426x240;
hls_variant _240p264kbs BANDWIDTH=264000,RESOLUTION=426x240;
}
}
}

http {
access_log /dev/stdout combined;

ssl_ciphers HIGH:!aNULL:!MD5;
ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
ssl_session_cache shared:SSL:10m;
ssl_session_timeout 10m;

server {
listen 80;

# Uncomment these lines to enable SSL.
# Update the ssl paths with your own certificate and private key.
# listen 443 ssl;
# ssl_certificate /opt/certs/example.com.crt;
# ssl_certificate_key /opt/certs/example.com.key;

location /hls {
types {
application/vnd.apple.mpegurl m3u8;
video/mp2t ts;
}
root /opt/data;
add_header Cache-Control no-cache;
add_header Access-Control-Allow-Origin *;
}

location /live {
alias /opt/data/hls;
types {
application/vnd.apple.mpegurl m3u8;
video/mp2t ts;
}
add_header Cache-Control no-cache;
add_header Access-Control-Allow-Origin *;
}

location /stat {
rtmp_stat all;
rtmp_stat_stylesheet static/stat.xsl;
}

location /static {
alias /www/static;
}

location = /crossdomain.xml {
root /www/static;
default_type text/xml;
expires 24h;
}
}
}

推流命令

1
raspivid -w 640 -h 480 -b 15000000 -t 0 -a 12 -a 1024 -a "CAM-1 %Y-%m-%d %X" -ae 18,0xff,0x808000 -o - | ffmpeg -re -i - -s 640x480 -vcodec copy -acodec copy -b:v 800k -b:a 32k -f flv rtmp://192.168.8.100:8935/stream/stream

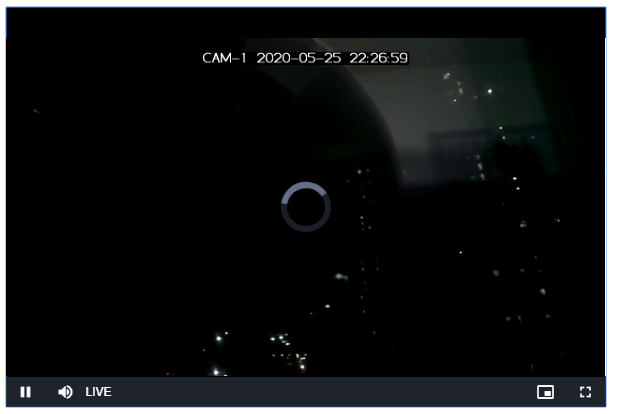

上个图
