【Asp.Net】WebApi使用Swagger调试接口

最近的项目都是前后端分离的，后端都是提供Api接口的。

有时调试起来很不方便，给前端的wpi文档也需要经常变更很不方便。

如是网上搜了下，发现SwaggerUI还挺强大的，调试接口也比较方便，在此记录下：

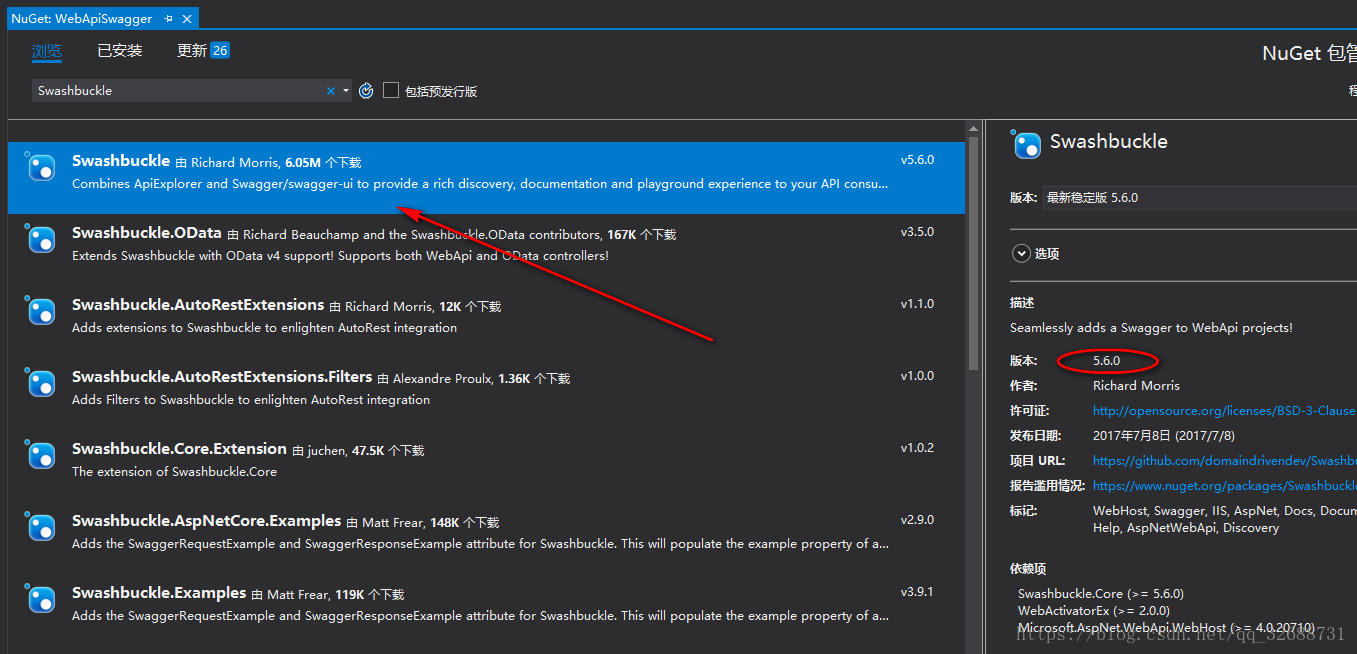

1、引入Swashbuckle

第一个就是，我装的版本是5.6.0

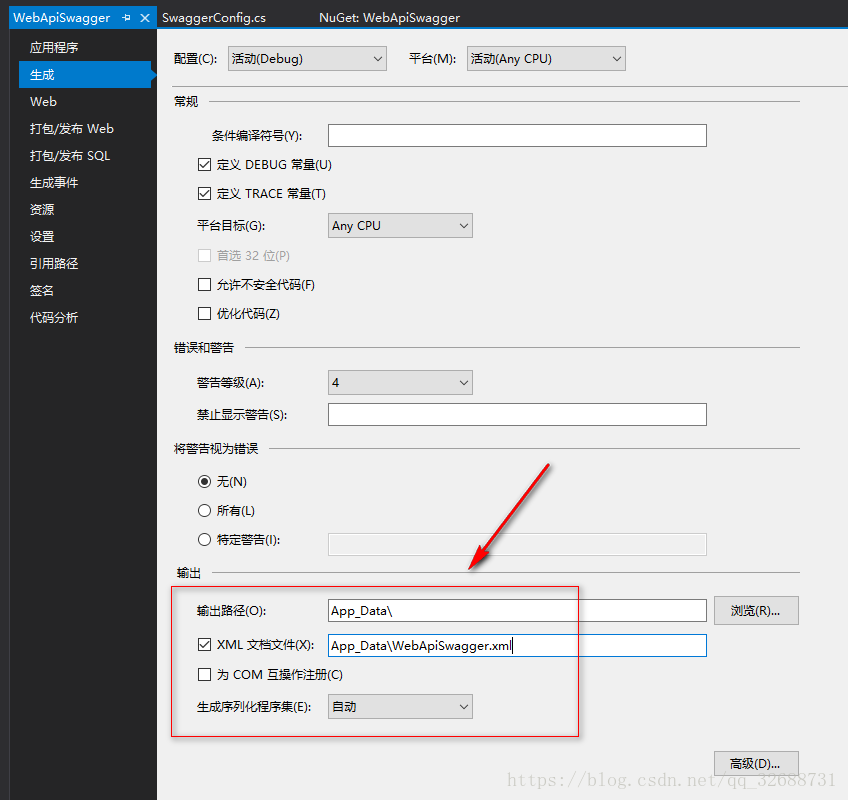

设置xml文件输出路径：

在 App_Start 会生成 SwaggerConfig.cs，需要修改里面的内容：

public static void Register()
{
    var thisAssembly = typeof(SwaggerConfig).Assembly;

    GlobalConfiguration.Configuration
        .EnableSwagger(c =>
        {
            c.SingleApiVersion("v1", "WebApiSwagger");
            c.IncludeXmlComments(GetXmlCommentsPath());
            //token认证
            //c.OperationFilter<HttpHeaderFilter>();
        })
        .EnableSwaggerUi(c => {
            //汉化
            //c.InjectJavaScript(Assembly.GetExecutingAssembly(), "WebApiSwagger.SwaggerUi.scripts.swagger.js");
        });
}
private static string GetXmlCommentsPath()
{

    return System.String.Format(@"{0}/App_Data/WebApiSwagger.xml", System.AppDomain.CurrentDomain.BaseDirectory);
}

修改访问的起始页：

偷个懒，只需在home控制器里做个跳转

public class HomeController : Controller
{
    public ActionResult Index()
    {
        ViewBag.Title = "Home Page";
        Response.Redirect("/swagger/ui/index/");
        return View();
    }
}

在App_Start 中添加一个类 IOperationFilter.cs ：

using Swashbuckle.Swagger;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Http;
using System.Web.Http.Description;
using System.Web.Http.Filters;

namespace WebApiSwagger.App_Start
{
    /// <summary>
    ///
    /// </summary>
    public class HttpHeaderFilter : IOperationFilter
    {
        /// <summary>
        ///
        /// </summary>
        /// <param name="operation"></param>
        /// <param name="schemaRegistry"></param>
        /// <param name="apiDescription"></param>
        public void Apply(Operation operation, SchemaRegistry schemaRegistry, ApiDescription apiDescription)

        {
            if (operation.parameters == null)
                operation.parameters = new List<Parameter>();
            var filterPipeline = apiDescription.ActionDescriptor.GetFilterPipeline(); //判断是否添加权限过滤器
            var isAuthorized = filterPipeline.Select(filterInfo => filterInfo.Instance).Any(filter => filter is IAuthorizationFilter); //判断是否允许匿名方法
            var allowAnonymous = apiDescription.ActionDescriptor.GetCustomAttributes<AllowAnonymousAttribute>().Any();
            if (isAuthorized && !allowAnonymous)
            {
                operation.parameters.Add(new Parameter { name = "Authorization", @in = "header", description = "Token", required = false, type = "string" });
            }
        }
    }
}

修改：

public static void Register()
{
    var thisAssembly = typeof(SwaggerConfig).Assembly;

    GlobalConfiguration.Configuration
        .EnableSwagger(c =>
            {
                c.SingleApiVersion("v1", "WebApiSwagger");
                c.IncludeXmlComments(GetXmlCommentsPath());
                c.OperationFilter<HttpHeaderFilter>();
            })
        .EnableSwaggerUi(c=> {
                c.InjectJavaScript(Assembly.GetExecutingAssembly(), "WebApiSwagger.SwaggerUi.scripts.swagger.js");
                //c.InjectStylesheet();
        });
}

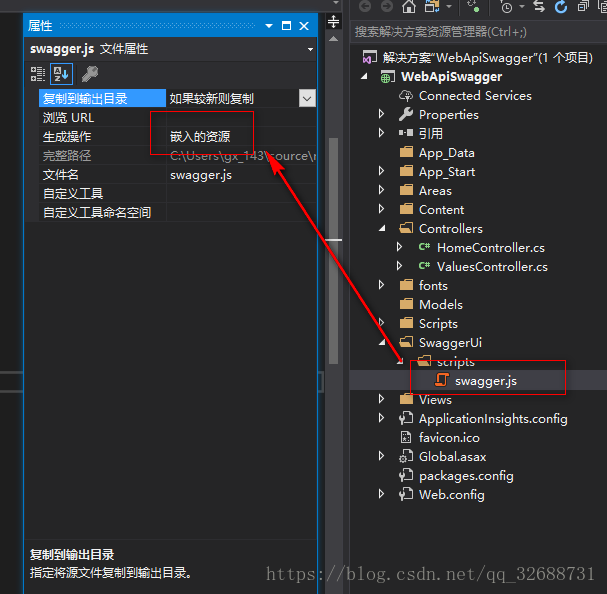

汉化：

js内容：

 'use strict';
/**
 * Translator for documentation pages.
 *
 * To enable translation you should include one of language-files in your index.html
 * after <script src='lang/translator.js' type='text/javascript'></script>.
 * For example - <script src='lang/ru.js' type='text/javascript'></script>
 *
 * If you wish to translate some new texsts you should do two things:
 * 1. Add a new phrase pair ("New Phrase": "New Translation") into your language file (for example lang/ru.js). It will be great if you add it in other language files too.
 * 2. Mark that text it templates this way <anyHtmlTag data-sw-translate>New Phrase</anyHtmlTag> or <anyHtmlTag data-sw-translate value='New Phrase'/>.
 * The main thing here is attribute data-sw-translate. Only inner html, title-attribute and value-attribute are going to translate.
 *
 */
window.SwaggerTranslator = {
    _words: [],

    translate: function () {
        var $this = this;
        $('[data-sw-translate]').each(function () {
            $(this).html($this._tryTranslate($(this).html()));
            $(this).val($this._tryTranslate($(this).val()));
            $(this).attr('title', $this._tryTranslate($(this).attr('title')));
        });
    },

    _tryTranslate: function (word) {
        return this._words[$.trim(word)] !== undefined ? this._words[$.trim(word)] : word;
    },

    learn: function (wordsMap) {
        this._words = wordsMap;
    }
};

/* jshint quotmark: double */
window.SwaggerTranslator.learn({
    "Warning: Deprecated": "警告：已过时",
    "Implementation Notes": "实现备注",
    "Response Class": "响应类",
    "Status": "状态",
    "Parameters": "参数",
    "Parameter": "参数",
    "Value": "值",
    "Description": "描述",
    "Parameter Type": "参数类型",
    "Data Type": "数据类型",
    "Response Messages": "响应消息",
    "HTTP Status Code": "HTTP状态码",
    "Reason": "原因",
    "Response Model": "响应模型",
    "Request URL": "请求URL",
    "Response Body": "响应体",
    "Response Code": "响应码",
    "Response Headers": "响应头",
    "Hide Response": "隐藏响应",
    "Headers": "头",
    "Try it out!": "试一下！",
    "Show/Hide": "显示/隐藏",
    "List Operations": "显示操作",
    "Expand Operations": "展开操作",
    "Raw": "原始",
    "can't parse JSON.  Raw result": "无法解析JSON. 原始结果",
    "Model Schema": "模型架构",
    "Model": "模型",
    "apply": "应用",
    "Username": "用户名",
    "Password": "密码",
    "Terms of service": "服务条款",
    "Created by": "创建者",
    "See more at": "查看更多：",
    "Contact the developer": "联系开发者",
    "api version": "api版本",
    "Response Content Type": "响应Content Type",
    "fetching resource": "正在获取资源",
    "fetching resource list": "正在获取资源列表",
    "Explore": "浏览",
    "Show Swagger Petstore Example Apis": "显示 Swagger Petstore 示例 Apis",
    "Can't read from server.  It may not have the appropriate access-control-origin settings.": "无法从服务器读取。可能没有正确设置access-control-origin。",
    "Please specify the protocol for": "请指定协议：",
    "Can't read swagger JSON from": "无法读取swagger JSON于",
    "Finished Loading Resource Information. Rendering Swagger UI": "已加载资源信息。正在渲染Swagger UI",
    "Unable to read api": "无法读取api",
    "from path": "从路径",
    "server returned": "服务器返回"
});


$(function () {
    window.SwaggerTranslator.translate();
});

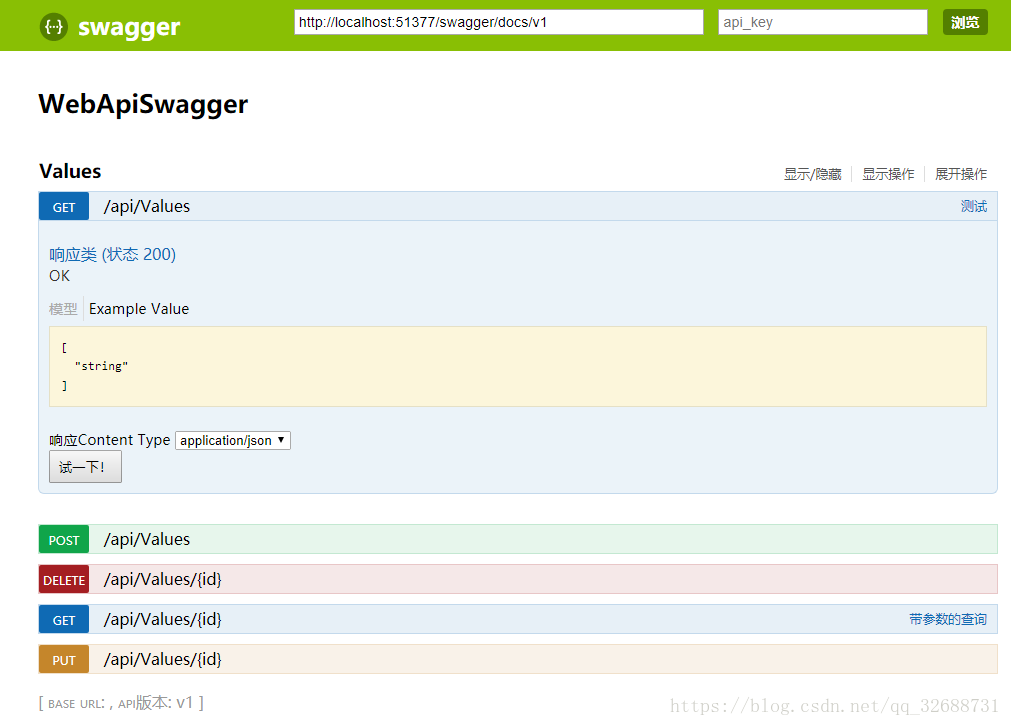

效果图：

自动获取token，在swagger.js添加：

$(function () {
    window.SwaggerTranslator.translate();
    //自动获取Token
    $.ajax({
        type: "POST",
        url: "/token",
        data: "grant_type=password&username=admin&password=admin",
        success: function (res) {
            var token = res['access_token'];
            $("input[name='Authorization']").val('Bearer ' + token);
        },
        dataType: 'Json',
    });
});
